Background Fading (Built-In Render Pipeline)

The Background Fading support package provides a set of shaders and a controller script to fade distant, procedurally generated geometry into the skybox rather than a solid color fog. This helps conceal pop-in artifacts in infinite or procedural scenes with minimal performance impact.

The fading shaders calculate a depth-based distance gradient relative to a designated spatial center (such as the camera or vehicle position). Pixels on distant meshes are blended into the active skybox material or cubemap to mask the edge of the generated world.

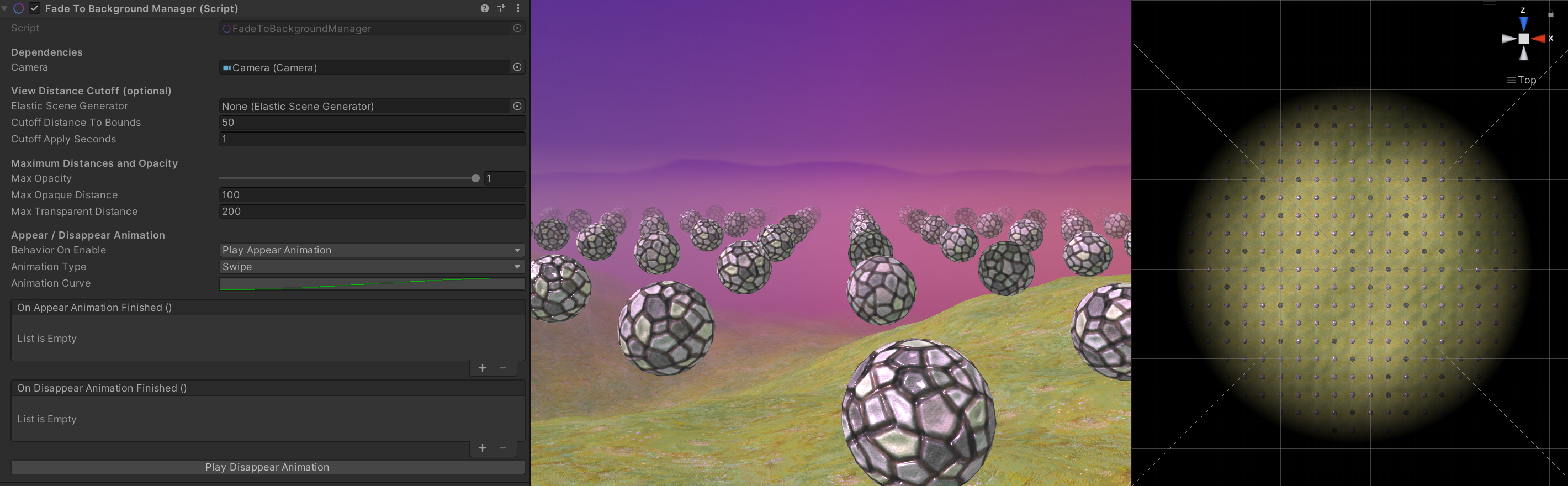

BackgroundFading

Installation

  1. Open the Unity Package Manager in your project.
  2. Install the package com.holoride.elasticsdk.fadetobackground.builtinrp.
  3. (Optional) Import the provided sample scene directly from the Package Manager description panel to test the setup.

Usage

Applying Background Fading to your scene involves three simple steps:

  1. Apply Fading Shaders: Assign the provided FadeToBackground shaders (such as FadeToBackground/Standard, FadeToBackground/Mobile-Bumped-Diffuse, or FadeToBackground/Nature/Terrain/Diffuse) to the materials of all objects that should fade in the distance.
  2. Apply Skybox Shader: Create a skybox material using the FadeToBackground/Skybox/Cubemap shader and assign it to your scene's active skybox in the Lighting window.
  3. Add Controller: Attach the BackgroundFading component to any active GameObject in your scene hierarchy (Add Component > holoride > BackgroundFading).
Important

Always ensure the BackgroundFading component is active in your scene when using the FadeToBackground/Skybox/Cubemap shader. Running the skybox shader without an active controller can result in visual smearing artifacts.

The BackgroundFading Component

The BackgroundFading component automates the creation, management, and attachment of background-clearing command buffers (CommandBuffer) to all active cameras matching your layer masks.

Parameters & Inspector Settings

Parameter Type Description
Fading Center Transform The spatial center around which materials fade (typically assigned to your Main Camera or the root Vehicle transform).
Affected Layers LayerMask A layer mask defining which cameras will have the fading command buffer attached to them (evaluated against the camera's culling mask).
Opacity float (0-1) The overall maximum opacity multiplier of the fading effect.
Opaque Distance float The distance (in meters) from the fading center at which objects begin to fade out.
Transparent Distance float The distance (in meters) from the fading center at which objects become completely transparent (blended 100% into the skybox).
